Wide Format UV Inkjet Printers

Wide Format UV Inkjet Printers

  • As small as 4 picoliter droplet
  • Up to 10 print heads: 2 rows, 5 heads each
  • Auto media thickness detection system
  • Scalability
  • Static suppression
  • Liquid-cooled LED curing system standard
  • Linear motor, magnetic rail system option*

Download Brochure (PDF)

RF/ZF FLATBED SERIES

RH/ZH HYBRID SERIES

ZR ROLL-TO-ROLL SERIES

RF/ZF FLATBED SERIES

Models in 3 sizes with Ricoh Gen5, Ricoh Gen6 or Kyocera print heads for up to 4-inch thick media.

Learn More

RH/ZH HYBRID SERIES

63”, 98”, 126” max width in choice of Ricoh Gen5, Ricoh Gen6 and Kyocera heads for rigid, flexible and roll.

Learn More

ZR ROLL-TO-ROLL SERIES

Big 126” and 196” width machines deliver up to 2067 ft²/hr on up to 2mm media thicknesses.

Learn More

RF/ZF FLATBED SERIES

RF/ZF FLATBED SERIES

Models in 3 sizes with Ricoh Gen5, Ricoh Gen6 or Kyocera print heads for up to 4-inch thick media.

Learn More

RH/ZH HYBRID SERIES

RH/ZH HYBRID SERIES

63”, 98”, 126” max width in choice of Ricoh Gen5, Ricoh Gen6 and Kyocera heads for rigid, flexible and roll.

Learn More

ZR ROLL-TO-ROLL SERIES

ZR ROLL-TO-ROLL SERIES

Big 126” and 196” width machines deliver up to 2067 ft²/hr on up to 2mm media thicknesses.

Learn More

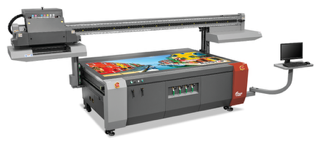

RF / ZF FLATBED SERIES

Applications: Ceramic Tile, Wall Graphics, Metal, Acrylic, Phone Cases, Glass & MDF

Ricoh Gen5/Gen6 Print Heads (Dual channel heads)

R53F / R84F / R105F

Featuring variable dots, true gray scale imaging 7, 14 and 21pl (Gen5) | 5, 10 and 15pl (Gen6)

  • Up to 733 ft²/hr
  • Up to 23  boards/hr
  • Up to 4" thick media
  • Sizes: 5' x 3.25', 8' x 4' & 10' x 5'
  • 4 vacuum zones
  • Pin registration system
  • LED curing standard

Kyocera Print Heads (Dual channel heads)

Z53F / Z84F / Z105F

Featuring variable dots, true gray scale imaging 4, 6 and 10pl at true native dpi

  • FASTEST FLATBED IN ITS SEGMENT
  • Up to 1400 ft²/hr
  • Up to 43+ boards/hr
  • Up to 4" thick media
  • Sizes: 5' x 3.25', 8' x 4' & 10' x 5'
  • 4 vacuum zones
  • Pin registration system
  • LED curing standard
  • Linear motor, magnetic rail system option for Z105F*

R53F / Z53F R53F / Z53F

R84F / Z84F R84F / Z84F

R105F / Z105F* R105F / Z105F*

R53F / Z53FR53F / Z53F

R84F / Z84FR84F / Z84F

R105F / Z105F*R105F / Z105F*

ModelR53FR53F TURBOZ53F
PrintheadRicoh Gen5Ricoh Gen6Kyocera KJ4A
Quantity of Printheads2-4 pcs (Single row)2-4 pcs (Single row)
Resolution (dpi)12001200
Print Speed (ft2/h)Draft216292388
Production140218291
Quality97168216
Print ModeUnidirectional & bidirectional
Max Width5.25 x 3.25 ft
Max Media Thickness4 in
Media TypeRigid and flexible flat materials
InkUV-curable & eco-friendly (VOC free). Designed for either roll-fed, hybrid or rigid printer applications, providing excellent media compatibility across a broad range of substrates, exploiting the largest color gamut.
RIP PlatformOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, V (Varnish is optional when there is no Lc & Lm)
ModelR84FR84F TURBOZ84F
PrintheadRicoh Gen5Ricoh Gen6Kyocera KJ4A
Quantity of Printheads3-8 pcs (Double rows)3-4 pcs (Single row)4-8 pcs (Double rows)10 pcs (Symmetrical array)
Resolution (dpi)1200120012003600
Print Speed (ft2/h)Draft4526495177321077
Production323484356571840
Quality226371248421603
Print ModeUnidirectional & bidirectional
Max Width8 x 4 ft
Max Media Thickness4 in
Media TypeRigid and flexible flat materials
InkUV-curable & eco-friendly (VOC free). Designed for either roll-fed, hybrid or rigid printer applications, providing excellent media compatibility across a broad range of substrates, exploiting the largest color gamut.
RIP PlatformOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, V
ModelR105FR105F TURBOZ105F
PrintheadRicoh Gen5Ricoh Gen6Kyocera KJ4A
Quantity of Printheads4-8 pcs (Double rows)4-8 pcs (Double rows)10 pcs (Symmetrical array)
Resolution (dpi)120012003600
Print Speed (ft2/h)Draft58273310231400
Production409521754969
Quality191421571754
Print ModeUnidirectional & bidirectional
Max Width10 x 5 ft
Max Media Thickness4 in
Media TypeRigid and flexible flat materials
InkUV-curable & eco-friendly (VOC free). Designed for either roll-fed, hybrid or rigid printer applications, providing excellent media compatibility across a broad range of substrates, exploiting the largest color gamut.
RIP PlatformOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, V
ModelR53FR53F TURBOZ53FR84FR84F TURBOZ84FR105FR105F TURBOZ105F
PrintheadRicoh Gen5Ricoh Gen6Kyocera KJ4ARicoh Gen5Ricoh Gen6Kyocera KJ4ARicoh Gen5Ricoh Gen6Kyocera KJ4A
Quantity of Printheads2-4 pcs (Single row)2-4 pcs (Single row)3-8 pcs (Double rows)3-4 pcs (Single row)4-8 pcs (Double rows)10 pcs (Symmetrical array)4-8 pcs (Double rows)4-8 pcs (Double rows)10 pcs (Symmetrical array)
Resolution (dpi)120012001200120012003600120012003600
Print Speed (ft2/h)Draft216292388452649517732107758273310231400
Production140218291323484356571840409521754969
Quality97168216226371248421603191421571754
Print ModeUnidirectional & bidirectionalUnidirectional & bidirectionalUnidirectional & bidirectional
Max Width5.25 x 3.25 ft8 x 4 ft10 x 5 ft
Max Media Thickness4 in4 in4 in
Media TypeRigid and flexible flat materialsRigid and flexible flat materialsRigid and flexible flat materials
InkUV-curable & eco-friendly (VOC free). Designed for either roll-fed, hybrid or rigid printer applications, providing excellent media compatibility across a broad range of substrates, exploiting the largest color gamut.
RIP PlatformOnyx and other 3rd party RIP solutionsOnyx and other 3rd party RIP solutionsOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, V (Varnish is optional when there is no Lc & Lm)C, M, Y, K, Lc, Lm, W, O, VC, M, Y, K, Lc, Lm, W, O, V

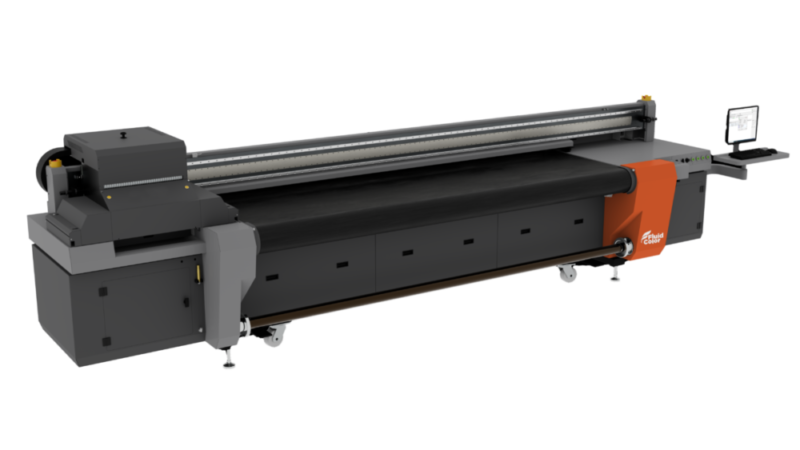

RH / ZH HYBRID SERIES

Applications: Billboard or Banner, Backlit Fabric/Light Box, PVC Soft Film, Backlit Film, Non-woven Fabrics

Ricoh Gen5/Gen6 Print Heads (Dual channel heads)

R63H / R98H / R126H

Featuring variable dots, true gray scale imaging 7, 14 and 21pl (Gen5) | 5, 10 and 15pl (Gen6)

  • Up to 799 ft²/hr
  • Up to 2" thick media
  • Sizes: 63", 98" & 126"
  • 4 vacuum zones
  • Retractable registration bar
  • Linear motor, magnetic rail system option not available
  • For Ricoh head systems
  • LED curing standard

Kyocera Print Heads (Dual channel heads)

Z63H / Z98H / Z126H

Featuring variable dots, true gray scale imaging 4, 6 and 10pl at true native dpi

  • FASTEST HYBRID IN ITS SEGMENT
  • Up to 1530 ft²/hr
  • Up to 2" thick media
  • Sizes: 63", 98" & 126"
  • 4 vacuum zones
  • Retractable registration bar
  • Linear motor, magnetic rail system option for Z126H*

R63H / Z63H R63H / Z63H

R98H / Z98H R98H / Z98H

R126H / Z126H* R126H / Z126H*

R63H / Z63HR63H / Z63H

R98H / Z98HR98H / Z98H

R126H / Z126H*R126H / Z126H*

ModelR63HR63H TURBOZ63H
PrintheadRicoh Gen5Ricoh Gen6Kyocera KJ4A
Quantity of Printheads2-4 pcs (Single row)2-4 pcs (Single row)
Resolution (dpi)12001200
Print Speed (ft2/h)Draft237323388
Production151229291
Quality108176216
Print ModeUnidirectional & bidirectional
Max Width63 in
Max Media Thickness2 in
Media TypeRigid, flexible and roll medias
InkEnvironmental friendly UV curable ink (VOC free)
RIP PlatformOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, V (Varnish is optional when there is no Lc & Lm)
ModelR98HR98H TURBOZ98H
PrintheadRicoh Gen5Ricoh Gen6Kyocera KJ4A
Quantity of Printheads4-8 pcs (Double rows)2-4 pcs (Single row)
Resolution (dpi)12001200
Print Speed (ft2/h)Draft517732592
Production355553409
Quality248424280
Print ModeUnidirectional & bidirectional
Max Width98 in
Max Media Thickness2 in
Media TypeRigid, flexible and roll medias
InkEnvironmental friendly UV curable ink (VOC free)
RIP PlatformOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, V
ModelR126HR126H TURBOZ126H
PrintheadRicoh Gen5Ricoh Gen6Kyocera KJ4A
Quantity of Printheads4-8 pcs (Double rows)4-8 pcs (Double rows)10 pcs (Symmetrical array)
Resolution (dpi)120012003600
Print Speed (ft2/h)Draft59279910771530
Production4315908081131
Quality345460571894
Print ModeUnidirectional & bidirectional
Max Width126 in
Max Media Thickness2 in
Media TypeRigid, flexible and roll medias
InkEnvironmental friendly UV curable ink (VOC free)
RIP PlatformOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, V
ModelR63HR63H TURBOZ63HR98HR98H TURBOZ98HR126HR126H TURBOZ126H
PrintheadRicoh Gen5Ricoh Gen6Kyocera KJ4ARicoh Gen5Ricoh Gen6Kyocera KJ4ARicoh Gen5Ricoh Gen6Kyocera KJ4A
Quantity of Printheads2-4 pcs (Single row)2-4 pcs (Single row)4-8 pcs (Double rows)2-4 pcs (Single row)4-8 pcs (Double rows)4-8 pcs (Double rows)10 pcs (Symmetrical array)
Resolution (dpi)1200120012001200120012003600
Print Speed (ft2/h)Draft23732338851773259259279910771530
Production1512292913555534094315908081131
Quality108176216248424280345460571894
Print ModeUnidirectional & bidirectionalUnidirectional & bidirectionalUnidirectional & bidirectional
Max Width63 in98 in126 in
Max Media Thickness2 in2 in2 in
Media TypeRigid, flexible and roll mediasRigid, flexible and roll mediasRigid, flexible and roll medias
InkEnvironmental friendly UV curable ink (VOC free)Environmental friendly UV curable ink (VOC free)Environmental friendly UV curable ink (VOC free)
RIP PlatformOnyx and other 3rd party RIP solutionsOnyx and other 3rd party RIP solutionsOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, V (Varnish is optional when there is no Lc & Lm)C, M, Y, K, Lc, Lm, W, O, VC, M, Y, K, Lc, Lm, W, O, V

ZR ROLL-TO-ROLL SERIES

Applications: Decorative Painting, Metal, Acrylic, Phone Cases, Glass & MDF

Kyocera Print Heads (Dual channel heads)

Z126R / Z196R

Featuring variable dots, true gray scale imaging 4, 6 and 10pl

  • MOST ECONOMICAL ROLL-TO-ROLL IN ITS SEGMENT
  • Z126R up to 937 ft²/hr
  • Z126R Turbo up to 1680 ft²/hr
  • Z196R up to 2067 ft²/hr
  • Up to 2mm thick media
  • Sizes: 126" (3.2 meters) & 196" (5 meters)
  • Mesh kits for printing on liner-less mesh media
  • Linear motor, magnetic rail system option for Z196R*

Z126R Z126R

Z196R* Z196R*

Z126RZ126R

Z196R*Z196R*

ModelZ126RZ126R TURBO
PrintheadKyocera KJ4A
Quantity of Printheads2-4 pcs (Single row)4-12 pcs (Symmetrical array)
Resolution (dpi)12003600
Print Speed (ft2/h)Draft9371680
Production6791240
Quality528883
Print ModeUnidirectional & bidirectional
Max Width126 in
Max Media Thickness2 mm
Media TypeRoll materials
InkFlexible UV Ink
RIP PlatformOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, V
ModelZ196R
PrintheadKyocera KJ4A
Quantity of Printheads8-10 pcs (Symmetrical array)
Resolution (dpi)3600
Print Speed (ft2/h)Draft2067
Production1507
Quality1163
Print ModeUnidirectional & bidirectional
Max Width196 in
Max Media Thickness2 mm
Media TypeRoll materials
InkFlexible UV Ink
RIP PlatformOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, V
ModelZ126RZ126R TURBOZ196R
PrintheadKyocera KJ4AKyocera KJ4A
Quantity of Printheads2-4 pcs (Single row)4-12 pcs (Symmetrical array)8-10 pcs (Symmetrical array)
Resolution (dpi)120036003600
Print Speed (ft2/h)Draft93716802067
Production67912401507
Quality5288831163
Print ModeUnidirectional & bidirectionalUnidirectional & bidirectional
Max Width126 in196 in
Max Media Thickness2 mm2 mm
Media TypeRoll materialsRoll materials
InkFlexible UV InkFlexible UV Ink
RIP PlatformOnyx and other 3rd party RIP solutionsOnyx and other 3rd party RIP solutions
Ink ColorC, M, Y, K, Lc, Lm, W, O, VC, M, Y, K, Lc, Lm, W, O, V
